Description
40 mm Puff PanelsSuitable for diverse applications, PUF panels consist of a rigid core sandwiched between sheet metal structural boards. PUF insulated sandwich panels integrate joists and studs, insulation, vapor and air barriers. Green Sanitizing solution. Water flow controller
Sanitizing Solution Consumption:
- Approx 20ml per person
- 3.5 unit per hour
Stay in Time:
- 5-10 sec per person for disinfectant
Connectivity:
- Camera can be connected
Running Cost Detail:
- Energy 3.5 unit/ Hours (0.3 unit/cycle)
Disinfectant Liquid (Chemical +Water)
Approx 20 ml /cycle
Structure Material:

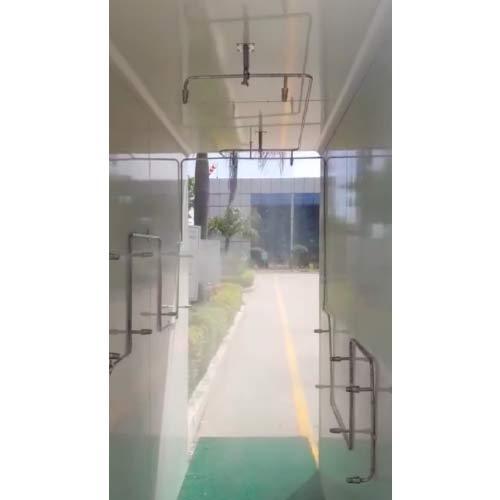

- Two 40 mm puff walls, Roof, Modular Design, Canopy, Entry Sensor – Motion Sensors, 24V DC Valve, Pressure Regulator, Electrical motor, Mat, Compressor
Warranty:
- 6 month on motor
Technical Data
| Tank Capacity | 100 Ltrs |
| Air Flow (CFM) | 15 CFM heavily duty |
| Number of nozzles | 6 (2×2 each both wall side, 2 on top) |
| Stay time in the Disinfection Zone | 5-10 Sec |
| Sanitizing solution consumption | Approx 10ml /cycle |
| Input Supply | 220V, 50/60 Hz |
| Safety Feature | Volt in wet 24V DC |
| Lights | 3 no’s (1 inside and 1+ entry, exit) |
| Earthing | Double |
| Entry Sensor | Motion Sensors |
| Dimension | External 4 x 4 x 8 feet (LxWxH) |
